LED SpA is a company specialising in the design and production of medical electronic equipment for the past 30 years. In particular the high frequency electro-surgical equipment that is able to supply an output power of 50W to 400W for applications using monopolar or bipolar methods, simultaneous or alternative supplier duct, and emission of continuous or cycle-timed power.
All LED SpA products conform to both General Safety Requirements and Specific International Standards concerning each single device and destination of use, and are CE marked under the IMQ Notified Body control and approval, where required. For more details see official LED SpA website or download a PDF brochure.
A complete range of electro-surgery products developed by LED SpA guarantees a wide availability of high frequency electro-surgery equipment certified and tested in order to offer the best standard and efficiency for the operator and the total certainty of the results.

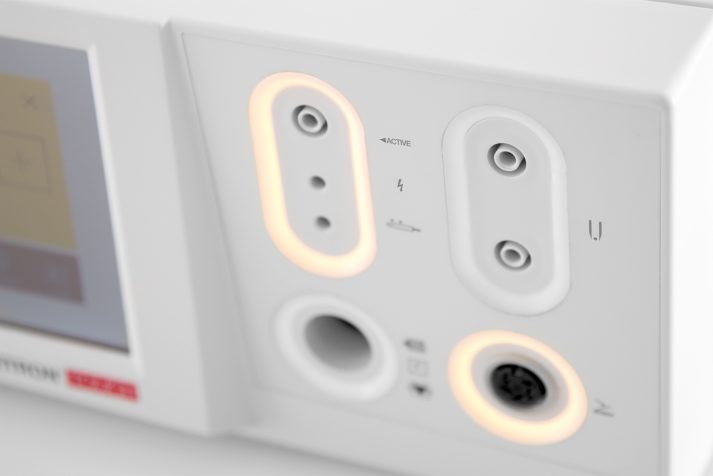

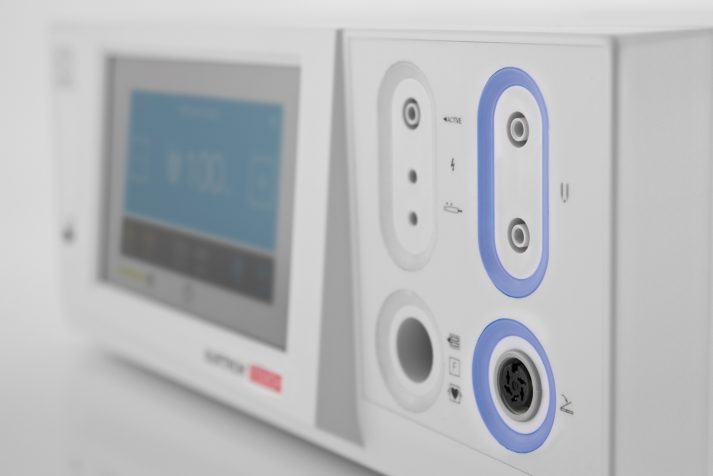

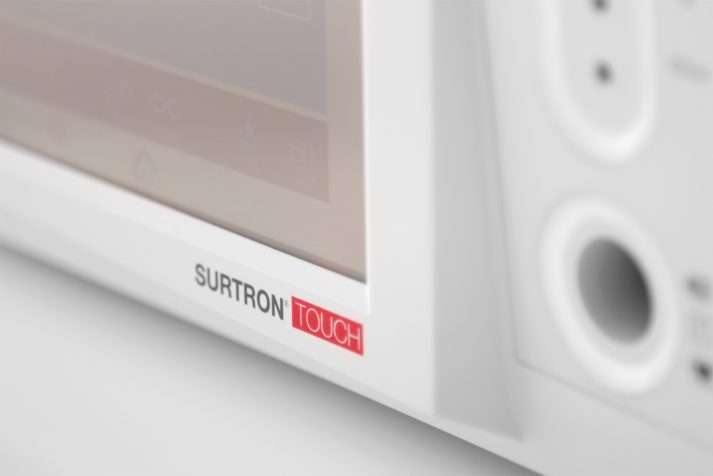

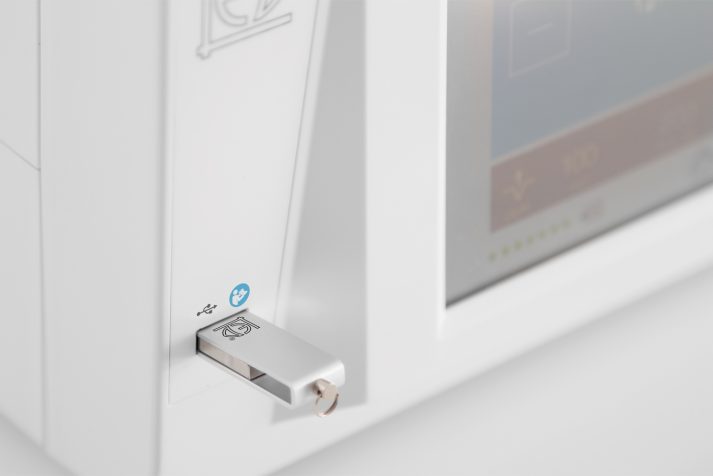

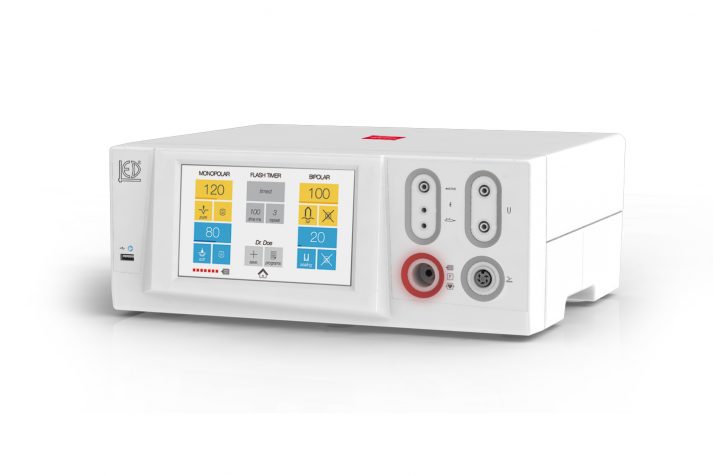

SURTRON® TOUCH is an High Frequency electrosurgical equipment which is suitable for precision monopolar and bipolar surgery and micro-surgery without tissue alterations.
SURTRON® TOUCH can supply HF operative powers either for programmable time as short as hundreds of a second.
The unit through its performances allows pure CUT, cut-coagulation BLEND, incision with reduced production of eschar ENHANCED, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG, bipolar CUT and COAG. The digital reading of the delivered power and the overseeing through microcontroller of the operational functions, assure the absolute reliability of the conditions of work.
SURTRON® TOUCH allows a highly professional surgery thanks to the user-friendly and safety solutions normally used.
The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.
FEATURES
Working frequency
360 kHz
RF power pulse emission time
10ms-30sec
RF power pulse interval
1-30
Patient circuit F
Selectable input voltage 90-240 Vac
Mains Frequency 50-60 Hz
Electrical input power 750 VA
Size WxHxD 370x145x300 mm
Weight 5.8kg
CONTROLS
Patient/Plate circuit monitoring
Output power monitoring
Self check control
SAFETY
EN60601-1
EN60601-1-2
EN60601-2-2
Electrical classification: I CF
MDD 93/42 / EC: II b

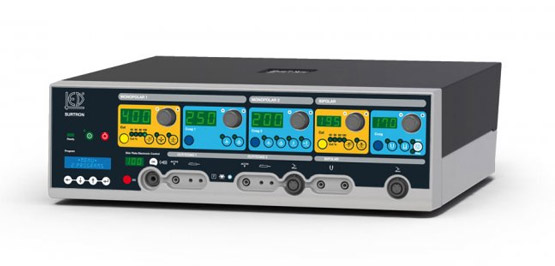

This generator can be used to simultaneously perform monopolar and bipolar surgery in application fields which require high precision and reliability.
DOUBLE ACTIVITY ‘OPERATION
• Two output channels for monopolar cutting
• Two independent setting and output channels for monopolar coagulation more frequently
CONTROLLED CUTTING PROCEDURES
• cutting currents for eschar free incision
• Cutting current with selectable coagulating property for bleeding controlled dissection
• Low capacitive coupling by current endoscopic procedures Slow BLEND
DOUBLE PROCEDURES SUBSIDIARIES COAGULATION
• SPEEDY Coag Coag DEEP ** * and two operators
• SPRAY COAG achievable with handpiece or pedal
WIDE BIPOLAR FEATURES
• Bipolar cutting with bleeding control
• Cutting current Slow BLEND
• Start and Stop automatic activated separately
TOTAL SAFETY FOR PATIENT AND SURGEON
• Acceptability of contact impedance between the patient’s body and the neutral plate constantly verified by the electronic control Skin Plate Electronic Control called SPEC
• Continuous monitoring of leakage current
• Change in automatically compensated mains voltage before starting the RF power output
CUSTOM PROCEDURES
• Independent choice of coagulation currents and power levels of each of the two operators
• Ten configurable personal procedures and immediately recallable
CONDUCT OF EXTENSIONS AND SIGNAL CONNECTION
• outputs for connections driven argon plasma units and smoke aspirator
AUTOMATIC SELF-DIAGNOSIS WITH SURTRON 300 HP
• Automatic diagnostic control of the actual complete electronic drive functionality and accessories connected and coded report of found failures
* Coag SPEEDY is also called Fulgurate or Forced
** Coag DEEP is also called Pin Point, Dessicate or Soft
FEATURES
Code 10400.802
Max output power monopolar pure CUT
300 W – 300 Ω
Max output power monopolar cut-coag CUT80%
250 W – 300 Ω
Max output power monopolar cut-coag CUT60%
200 W – 300 Ω
Max output power monopolar cut-coag CUT40%
150 W – 300 Ω
Max output power monopolar cut ENHANCED
200 W – 500 Ω
Max output power monopolar cut-coag BLEND
200 W – 300 Ω
Max output power monopolar coag SPEEDY
100 W – 500 Ω
Max output power monopolar coag DEEP
100 W – 200 Ω
Max output power monopolar coag SPRAY
70 W – 2000 Ω
Max output power monopolar coag SPRAY ARGON
70 W – 2000 Ω
Max output power bipolar CUT
120 W – 50 Ω
Max output power bipolar cut-coag CUT80%
120 W – 50 Ω
Max output power bipolar cut-coag CUT60%
120 W – 50 Ω
Max output power bipolar cut-coag CUT40%
100 W – 50 Ω
Max output power bipolar cut-coag BLEND
120 W – 150 Ω
Max output power bipolar coag COAG
120 W – 50 Ω
Vessel sealing
200 W – 50 Ω
Working frequency Monopolar / Bipolar
425 kHz / 525 kHz
Patient circuit
F
Selectable input voltage
115 – 230 Vac
Mains frequency
50 – 60 Hz
Electrical input power
1000 VA
Size WxHxD
470x150x400 mm
Weight
17,5 Kgs
CONTROLS
Patient/Plate circuit monitoring
Output power monitoring
Self check control
H.F. Leakage currents control
Compensation of mains fluctuation
SAFETY
EN60601-1
EN60601-1-2
EN60601-2-2
Electrical classification: CF
MDD 93/42 / EC: II b
See the PDF brochure for more details.
